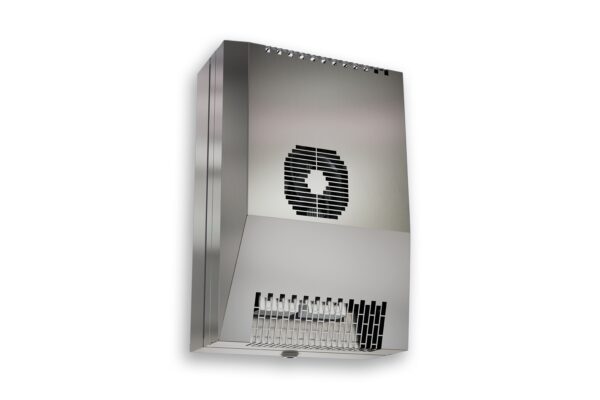

Peltier – cooling unit 230V DC / 200W
from 1.658,00 € exkl. MwSt.
from 1.973,02 € inkl. MwSt.
excl. VAT
Product description
– suitable for Indoor and Outdoor applications
– can be mounted in any position
– NEMA / Type 4X rated
– Ingress protection rating of IP66
– virtually maintenance free
Technical data
| Weight | 18 kg |
|---|---|
| Mounting type | wall mounted |
| Housing Material | Stainless steel AISI 304 (V2A) |
| Ingress Protection | IP66, NEMA / UL Type 4X |
| Approvals | CE, cURus |
| Cooling Capacity L35L35 | 200W |
| Operating Temperatur Range | -20°C – +70°C |
| UL Temperatur Range | -20°C – +65°C |
| Air Flow Volume (System / Unimpeded) | Ambient air circuit: 106 / 260 m³/h |
| Dimension | 500 x 330 x 196 mm |
| Weight | 17,2 kg |
| Cut Out Dimension | 472 x 302 mm |
| Voltage / Frequency | 230 V ∼ 50/60 Hz |
| Current L35L35 | 1,1 A @ 230 V |
| Starting Current | 1,7 A @ 230 V |
| Max. Current | 1,2 A @ 230V |
| Nominal Power L35L35 | 250 W |
| Max. Power | 270 W |
| Fuse | 3 A (T) @ 230 V |
| Connection | 8-Pole Connector |
