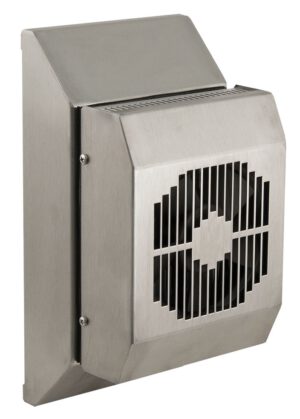

Peltier – cooling unit 24V DC / 50W
444,00 € – 506,00 €
excl. VAT
Product description
– suitable for Indoor and Outdoor applications
– can be mounted in any position
– NEMA / Type 4X rated
– Ingress protection rating of IP66
– virtually maintenance free
Technical data
| Weight | 3,3 kg |
|---|---|
| Mounting type | wall mounted |
| Housing Material | Stainless steel AISI 304 (V2A) |
| Ingress Protection | IP66, NEMA / UL Type 4X |
| Approvals | CE, cURus |
| Cooling Capacity L35L35 | 50W |
| Operating Temperatur Range | – 20°C – + 65°C |
| Air Flow Volume (System / Unimpeded) | Ambient air circuit: 64 / 170 m³/h |
| Dimension | 206 x 154 x 135 mm |
| Cut Out Dimension | 170 x 120 mm |
| Voltage / Frequency | 24V DC (use NEC Class 2 supply) |
| Current L35L35 | 2,4 A |
| Starting Current | 3,7 A |
| Max. Current | 2,5 A |
| Nominal Power L35L35 | 57,6W |
| Max. Power | 60W |
| Fuse | 4A (T) |
| Connection | Connection terminal block |
