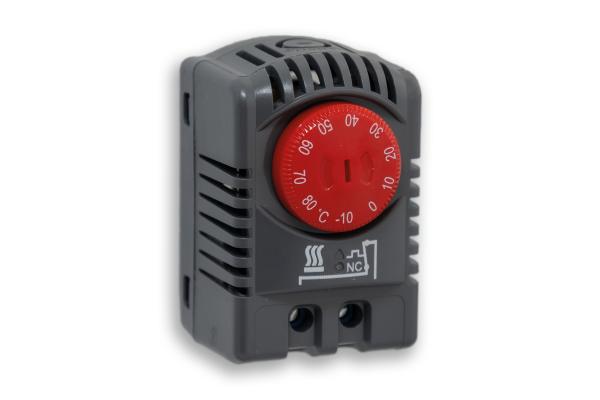

Thermostats – Adjustable
from 15,70 € excl. VAT
from 18,68 € incl. VAT
excl. VAT
Our high-quality, adjustable control cabinet thermostats ensure reliable and precise temperature control in control cabinets, control enclosures, and industrial systems. They effectively protect sensitive electrical and electronic components form overheating, condensation, and temperature fluctuations – thereby significantly contributing to the operational reliability and longevity of your systems.
Dependig on the model, the thermostats are suitable for controlling both control cabinet heaters (NC – normally closed) and fans and cooling units (NO – normally open). Their high switching accuracy ensures a constant temperature inside the control cabinet while optimizing energy consumption.
Their compact design and standardized DIN rail mounting allow the devices to be integrated quickly, easily, and in a space-saving manner into both existing and new systems. The setting range from -10°C to + 80°C enables flexible adaptation to a wide variety of operating conditions.
Features:
-> High switching accuracy
-> Quick and easy DIN-rail mounting
-> Precise control for your control cabinet
-> Long service life
-> Normally closed (NC) and normally open (NO) versions
| Weight | 0,065 kg |
|---|---|
| Switch contact | Normally closed (NC), Normally open (NO) |
| Voltage | max. 250V AC 16A(res) / 2A(ind) max. 72V DC max. 30W |
| Adjustment range Temperature | -10°C to +80°C |
| Dimensions (H x W x D) | 60x39x42,4mm |
| Protection type | IP20 |
| Operating temperature / Storage temperature | -45°C to +120°C / -40°C to +80°C (UL) |
| Mounting position | Vertical |
| Mounting connection | Clip for 35mm DIN-rail; EN60715 |
| Type of connection | 2-pole connection terminal, clamping torque 0,5Nm max. |
| Housing material | PC Plastic, Grey (RAL 7011) |
| Hysteresis | 7?3K |
| Switching accuracy | ?4K |
| Lifetime | 100.000 hrs. |
| Certifications | CE, UKCA, cURus |
