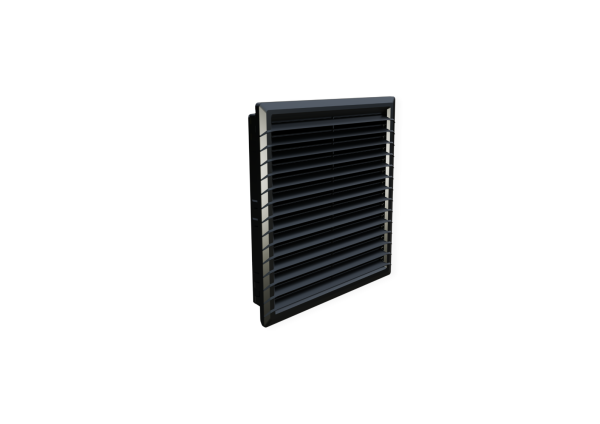

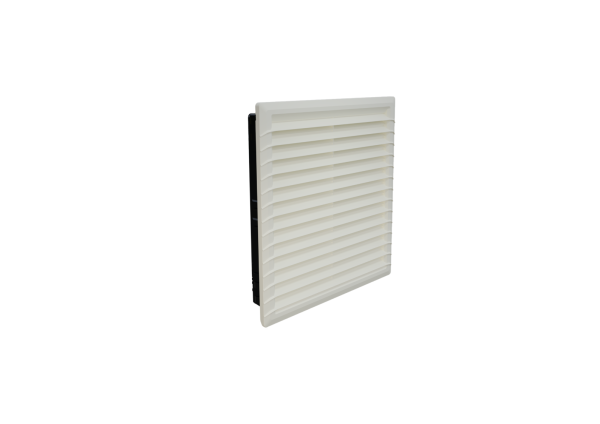

Exhaust filters Type 5 (292 x 292mm)
from 34,25 € excl. VAT
from 40,76 € incl. VAT
excl. VAT
Our exhaust filters are the ideal complement to our energy-efficient filter fans and ensure reliable, clean removal of heated air from control cabinets and technical enclosures. They support optimal air circulation, protect the interior of the enclosure form dust, dirt, and moisture, and thus contribute significantly to the operational safety and service life of sensitive electronics.
The robust construction and high-quality filter mats make the air outlet filters suitable for both industrial applications and demanding indoor and outdoor environments. Typical areas of application include mechanical and plant engineering, power distribution, automation technology, telecommunications cabinets, building technology, and modern charging infrastructure.
Tool-free assembly enables quick and easy installation and efficient filter replacement – a decisive advantage for service work and series production. Thanks to their harmoniously coordinated design, the air outlet filters fit perfectly with our filter fans and ensure a uniform professional appearance.
Features:
-> Clean and efficient air extraction to support optimum cooling performance
-> High-quality filter mats for reliable protection against dust and dirt
-> Tool-free assembly for quick installation and maintenance
-> Various sizes and variants for maximum flexibility
| Weight | 1 kg |
|---|---|
| Colour | Light Gray (RAL 7035), Black (RAL 9005) |
| Housing Material | PC plastic |
| Protection class | IP 54 |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Mounting | Wall mounted |
| Dimensions | 323,5 x 323,5 x 43,5mm |
| Cut out dimensions | 292 x 292mm |
| Approvals | CE, UKCA, cURus, cULus |
