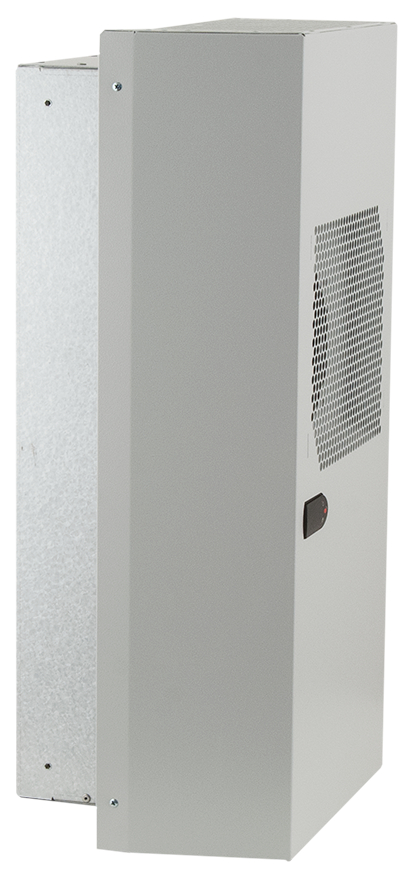

SlimLine Pro Cabinet cooling unit 230V / 1500W
1.481,00 €
excl. VAT
Available
Delivery time: On request
– Optional voltage: 120V, 400V
– Microchannel condenser enables the use of significantly less refrigerant and thus a reduction in the Co2 equivalence
– Built-in electrical condensate evaporator
– Enhanced IP protection class of IP56 / UL Type 4 or 4X in stainless steel version
– Extended temperature range of +10°C – +60°C
– suitable for side mounting on US control cabinets 10 “
| Weight | 41 kg |
|---|---|
| Colour | RAL 7035 |
| Housing Material | Mild steel, powder coated |
| Ingress Protection | IP 56 / Type 12,3,3R, 4 |
| Accessories | Washable Aluminium Filter, Cold Air Outlet Duct |
| Approvals | CE, cURus, cULus |
| Cooling Capacity L35L35 | 1.5 kW @ 50 Hz |
| Cooling Capacity L35L50 | 1.3 kW @ 50 Hz |
| Compressor | Rotary piston |
| Refrigerant / GWP | R134a / 1430 |
| Refrigerant Charge | 320 g / 11.3 oz |
| High / Low Pressure | 30 / 6 bar |
| Operating Temperature Range | +10°C – +60°C |
| Air Flow Volume (System / Unimpeded) | Ambient air circuit: 550 / 850 m³/h |
| Mounting | Wall mounted / recessed |
| Dimension A x B x C (D+E) | 1,350 x 395 x 210 (55+155) mm |
| Voltage / Frequency | 230 V ∼ 50/60 Hz (optional: 120V, 400V) |
| Current L35L35 | 2.9 A |
| Starting Current | 16 A |
| Max. Current | 4.7 A |
| Nominal Power L35L35 | 650 W |
| Max. Power | 1.1 kW |
| Fuse | 15 A (T) |
| Connection | 5 pole terminal for signals |
