Item No.: 930011

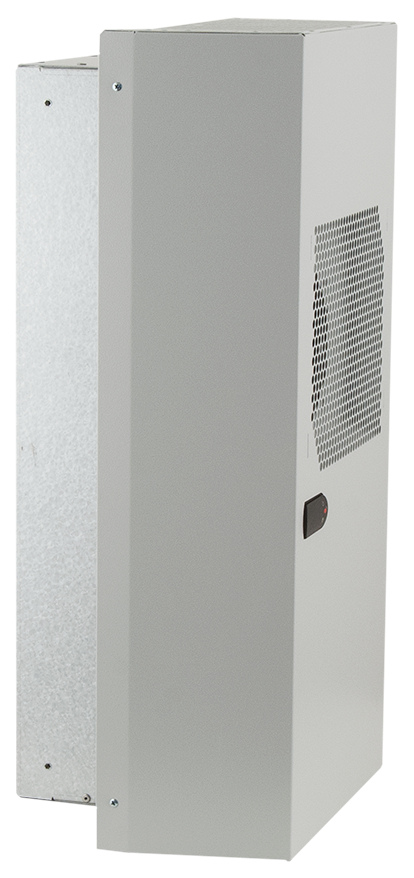

SlimLine Pro Cabinet cooling unit 230V/825W

1.024,00


In stock

Delivery time: 1-3 Working days


Produkt­beschreibung

– Optional voltage: 120V, 400V
– Microchannel condenser enables the use of significantly less refrigerant and thus a reduction in the Co2 equivalence
– Built-in electrical condensate evaporator
– Enhanced IP protection class of IP56 / UL Type 4 or 4X in stainless steel version
– Extended temperature range of +10°C – +60°C
– suitable for side mounting on US control cabinets 10 “

Technical data
Weight 25 kg
Colour

RAL 7035

Housing Material

Mild steel, powder coated

Ingress Protection

IP 56 / Type 12,3,3R, 4

Accessories

Washable Aluminium Filter, Cold Air Outlet Duct

Approvals

CE, CURus, cULus

Cooling Capacity L35L35

825 W @ 50 Hz
870 W @ 60 Hz

Cooling Capacity L35L50

820 W @ 50 Hz
835 W @ 60 Hz

Compressor

Rotary piston

Refrigerant / GWP

R134a / 1430

Refrigerant Charge

175 g / 6.2 oz.

High / Low Pressure

25 / 6 bar
363 / 87 psi

Operating Temperature Range

+10°C – +60°C

Air Flow Volume (System / Unimpeded)

Ambient air circuit: 370 / 650 m³/h
Cabinet air circuit: 350 / 550 m³/h

Mounting

External / recessed

Dimension A x B x C (D+E)

950 x 305 x 210 (55+155) mm

Voltage / Frequency

230 V ∼ 50/60 Hz (optional: 120V, 400V)

Current L35L35

2.1 A @ 50 Hz
2.3 A @ 60 Hz

Starting Current

6 A

Max. Current

3 A

Nominal Power L35L35

460 W @ 50 Hz
520 W @ 60 Hz

Max. Power

690 W

Fuse

15 A (T)

Connection

5 pole terminal for signals
4 pole terminal for power
